Everything you need, nothing you don’t. Compact and easy like a micro drive, with great performance and reliability to meet the quality demands of machine builders seeking simplicity and efficiency without compromise.
Technical features
Servo Motor & Drives

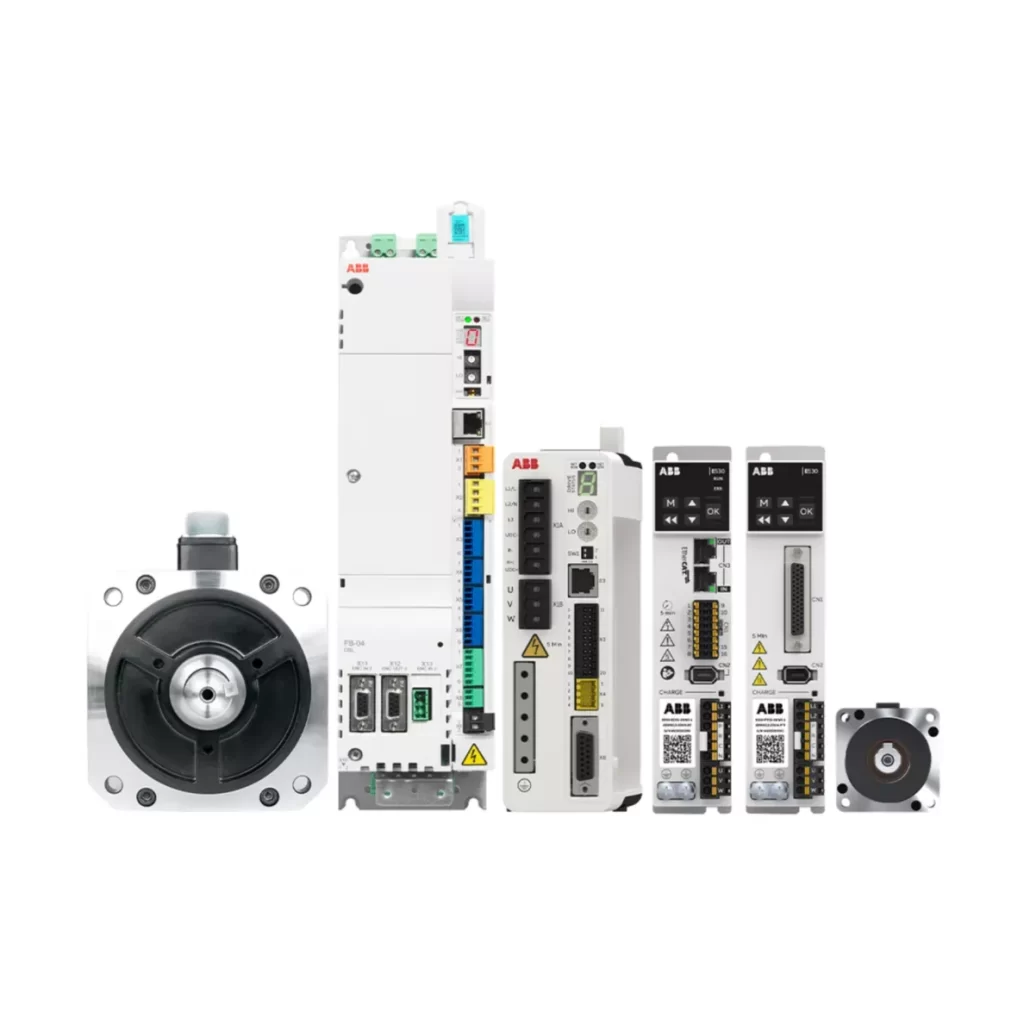

Servo products

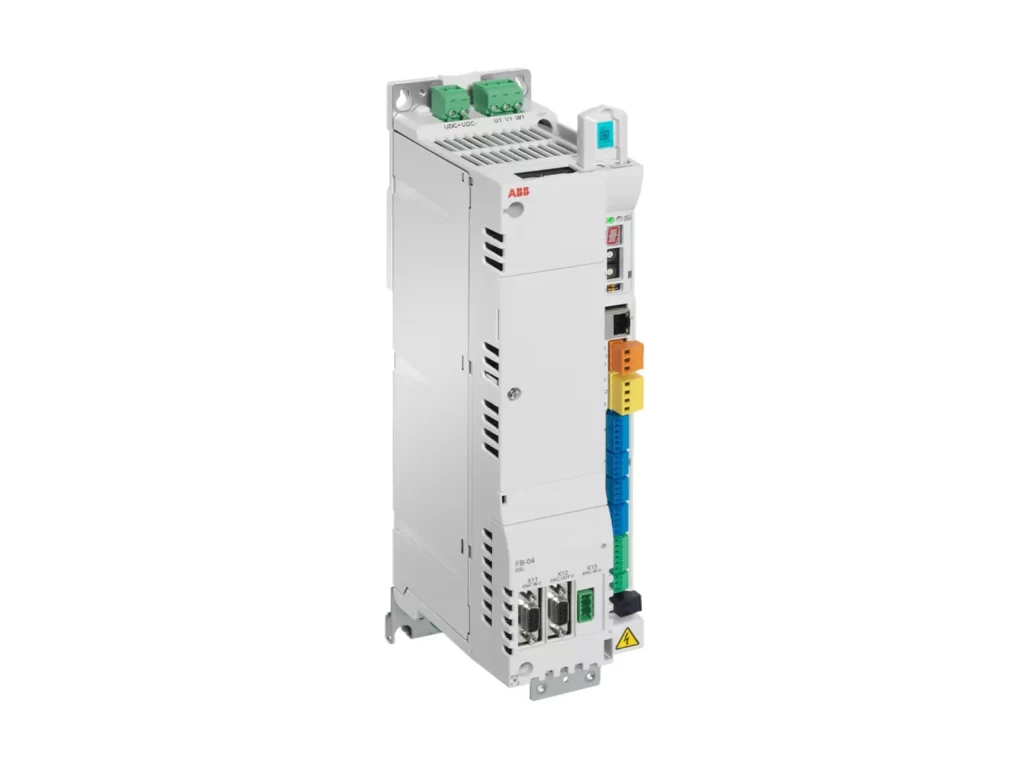

MotiFlex e180 servo drives
Versatile servo drives with flexible Ethernet communication protocol options
Technical features
- Three-phase operation voltage from 200 to 480 V AC
- Supports the HIPERFACE DSL one cable solution
- 200% and 300% overload capacity up to 3 s

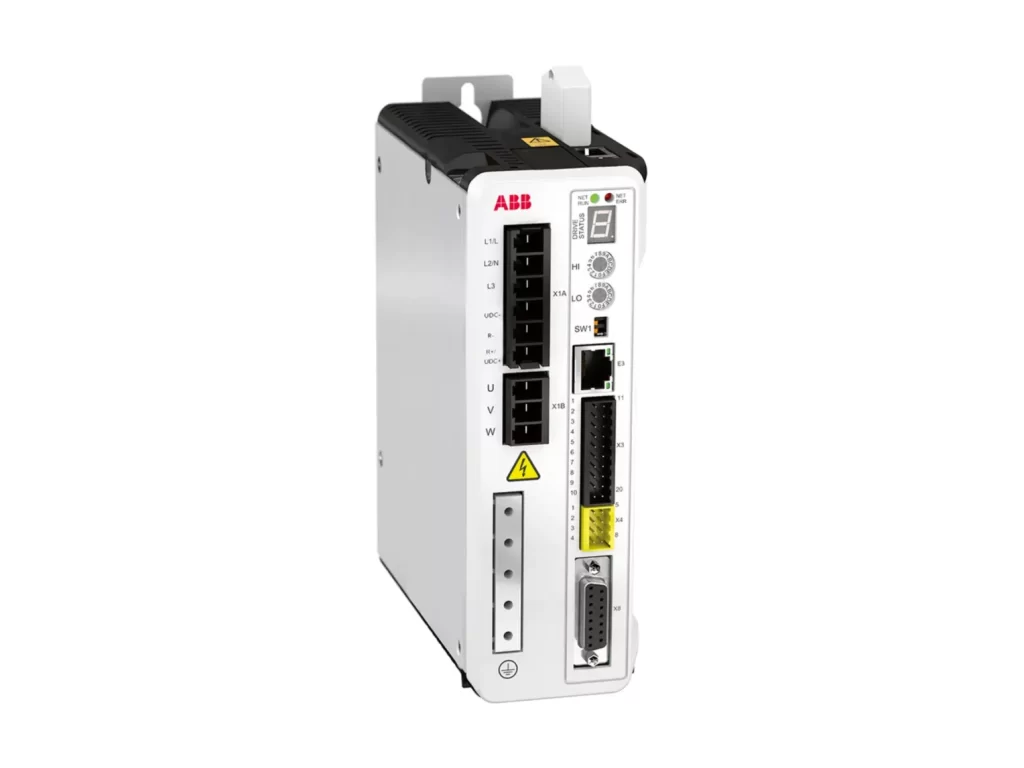

MicroFlex e190 servo drives
Compact servo drives with flexible Ethernet communication protocol options
Technical features
- Single/three-phase operation voltage from 200 to 240 V AC
- 200% and 300% overload capacity up to 3 s
- Wide range of feedback interfaces

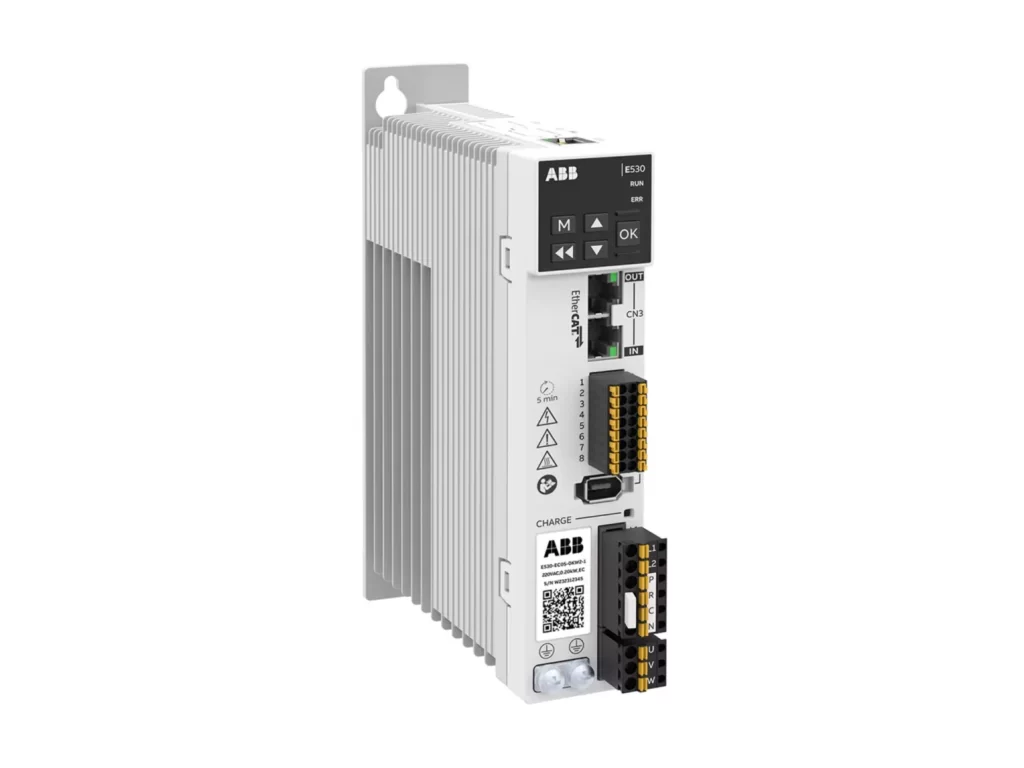

E530 servo drives
General-purpose servo drive with rich functions
Technical features
- Two variants: pulse train input (E530-PT) variant and EtherCAT (E530-EC) variant
- Standard communication protocol ensures the connectivity between the drive and controller
- The high speed loop response of 2 kHz achieves a high dynamic response

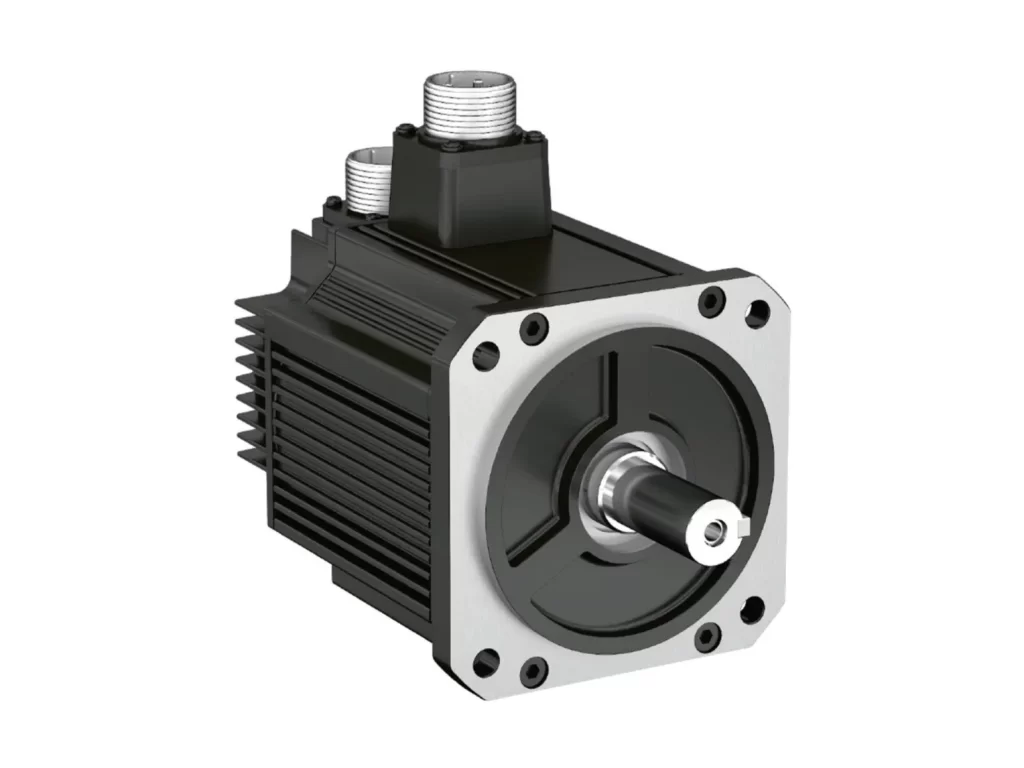

e-Series servo motors
Dynamic performance, compact design with absolute feedback as standard to maximise machine productivity
Technical features
- Three phase operation voltage from 220 to 480 V AC
- High performance on reliability and efficiency
- Various flange sizes

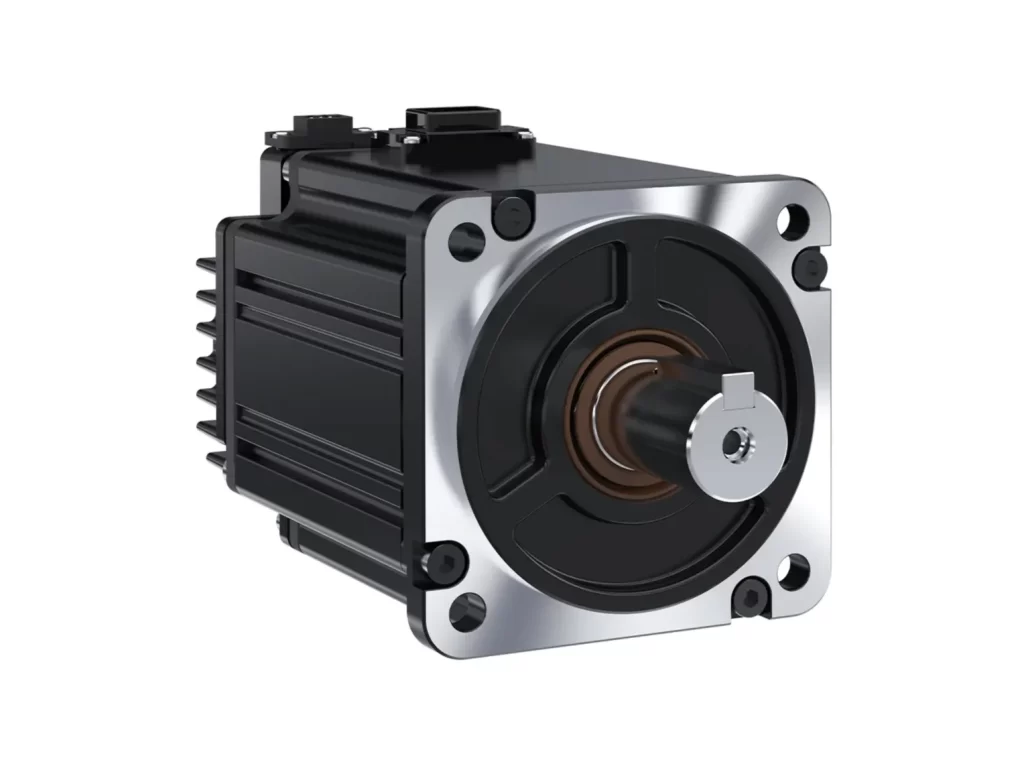

DSM servo motors
General-purpose servo motor with high-performance
Technical features
- Motor rated power range covers 0.05 kW to 7.5 kW, which can satisfy most of applications
- Protection degree of the motor is IP67 (shaft and connectors are excluded), which increases the reliability of the motor
- DSM servo motor with the resolution of 23 bits provides higher positioning accuracy
