RFID Reader & Antenna
RFID READER
RFID UHF Desktop Reader
- POS(Point-Of-Sales) System
- Document Tracking
- Access Control
- Tag Programming Stations
- Smart Shelves /Smart Displays
- Inventory Management
RFID UHF Integrated Reader
- Compact & Powerful
- Advanced RFID Technology for Faster & Accurate
- Read Rates – 50 tags/sec
- Read distance – 15 m (Max)
- Built-in Storage
- Android compatible
RFID Antena
RFID UHF Slim Antenna
- Operating Frequency: 865 MHz to 868 MHz (ETSI)
- Polarization: linear
- Gain: 6 .5 dBi
- Beam width: 70 Vertical / 70 Horizontal
- Connector type: SMA Female or N Type
- Max. Input Power: 10 W

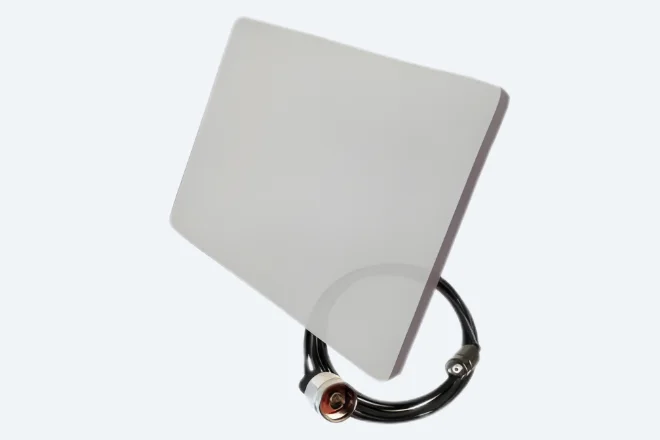

RFID UHF Antenna for Highway Toll Gates
- Operating Frequency: 865 MHz to 868 MHz
- Polarization: Circular
- Gain: 9 dBi
- Beam width: 50 Vertical / 75 Horizontal
- Connector type: SMA Female or N Type
RFID UHF LM200 Antenna
- Frequency Range: 865MFIz-867MFlz
- Maximum VSWR: <1.3:1 Gain: > 9 dBi
- H side HPBW: 70° E side HPBW: 70°
- Polarization: Circular Polarization Relative
- Humidity: 5%-95%
- Input Impedance: 50 O

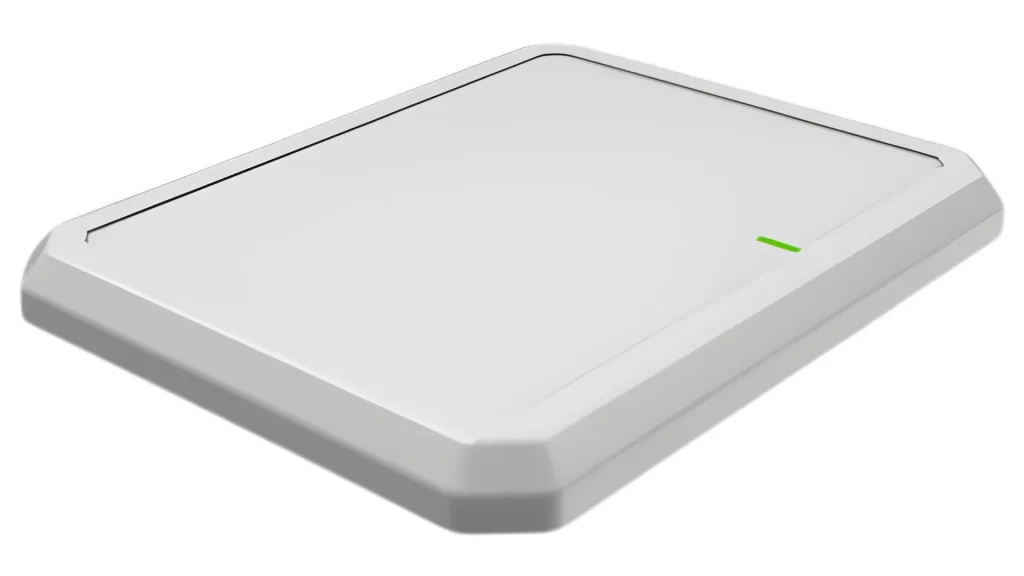

R40 RFID UHF INTEGRATED READER
Powerful, Precise, and Fast – Built for Long-Range RFID Applications
The R40 RFID UHF Integrated Reader is a compact, high-performance device designed for long-range applications. With fast, accurate, and interference-free tag reading, it’s ideal for logistics, inventory, and access control systems
Key Features
- High Read Range: Adjustable up to 10 meters.
- Rapid Tag Detection: Reads up to 50 tags per second.
- Integrated Circular Antenna: 6 dBi gain for enhanced accuracy.
- Multi-Interface Support: USB, Wiegand, RS232 for flexible connectivity.
- Compact & Durable: Lightweight ABS casing with IP54 protection.
- Power Options: Supports both PoE and external 12V DC power.
Specifications
- Frequency: 865–868 MHz (EPC C1G2).
- Transmit Power: 0–30 dBm (adjustable).
- Read Rate: Up to 50 tags per second.
- Read Distance: Up to 10 meters.
- Data Interfaces: USB, Wiegand, RS232.
- Antenna: Integrated 6 dBi circular polarized.
Mechanical & Environmental
- Dimensions: 240 × 315 × 25 mm.
- Weight: 3 kg.
- Material: ABS Plastic.
- Mounting: Wall mount.
- IP Rating: IP54 (dust and water-resistant).
- Power Supply: 12V DC / 2.0A.
RFID BASED SAFETY & SECURITY SYSTEM
Smart Safety for Smarter Schools
GreenFuturz’s RFID student tracking system offers real-time attendance and safety alerts. With RFID cards linked to each student, parents receive instant SMS updates on arrivals and departures, while schools benefit from automated reports and secure monitoring—all in a simple, cost-effective setup.
Key Features
- Real-Time Alerts: SMS notifications sent to parents upon school entry/exit
- Web-Based Reports: Instant access to attendance data
- Daily Auto Attendance: Automated entry and exit tracking
- Plug & Play: Quick setup and deployment
- Low Cost: Budget-friendly implementation
- Enhanced Safety: Monitors and tracks student movement effectively
Specifications
- Technology: UHF RFID
- Range: Short-range for gate proximity
- Alerts: GSM-based SMS notifications
- Interface: Web dashboard with real-time logs
- Card Type: Passive RFID ID cards
- Modes: Real-time & batch logging
Mechanical & Environmental
- Mounting: Wall-mounted or gate-side installation
- Material: Durable plastic scanner housing
- Power Source: AC-powered with battery backup (optional)
- Operating Temp: 0°C to 50°C
- Humidity: 10% to 90% RH (non-condensing)
- Durability: Designed for daily school operation with tamper-resistant casing
RFID INDUSTRIAL GATE
Smart Detection, Secure Protection.
The RFID Security Gate is a standalone UHF RFID system that tracks assets and detects unauthorized access in real-time. With fast tag reading, alarm alerts, and optional CCTV integration, it ensures reliable security for restricted areas. Ideal for warehouses, offices, and more, it operates independently for easy and efficient deployment
Key Features
- Real-Time Alarm Triggering: Instantly detects unauthorized asset movement.
- CCTV Integration: Adds a visual layer to security monitoring.
- High-Speed Performance: Reads up to 200 tags per second.
- Standalone Operation: Functions independently without backend dependencies.
- Multi-Platform SDK: Supports. NET, Android, and AT Command integration.
- Versatile Connectivity: Includes USB, Wiegand, RS232, Ethernet, WiFi, and GPRS.
Specifications
- Frequency: 856–867 MHz (UHF EPC C1G2)
- Power: 0–30 dBm (adjustable)
- Read Rate: 200 tags/sec
- Range: Up to 5 meters
- Interface: USB, RS232, Ethernet, WiFi, GPRS
- Antenna: 6/9 dBi, Circular
Mechanical & Environmental
- IP Rating: IP54 – suitable for indoor use
- Dimensions: 1500 x 250 mm
- Weight: 8 kg
- Material: Durable metal construction
- Mounting: Floor-standing unit
- Power Source: External DC (24V, 2.1A), AC-DC adapter included
RFID UHF 9DBI ANTENNA
High-Gain, Circular Polarized Antenna for Long-Range RFID Applications
This compact and lightweight antenna is engineered for high-performance UHF RFID systems. With 9dBi gain, circular polarization, and wide compatibility, it ensures fast, accurate tag reading even in dense environments. Ideal for industrial, retail, and logistics deployments.
Key Features
- High-gain 9 dBi for extended read range
- Circular polarization for improved tag readability
- Low VSWR (1.4:1) ensures efficient signal transfer
- Wide beamwidth (50° vertical / 75° horizontal)
- SMA Female or N-type connector options
- Lightweight, compact, and IP67 rated for harsh environments
Electrical Specifications
- Frequency Range: 865 MHz to 868 MHz
- Gain: 9 dBi
- Polarization: Circular
- VSWR: 1.4:1
- Axial Ratio: < 2.5 dB
- Antenna Impedance: 50 Ohm
- Read Distance: Up to 10 meters
Mechanical & Environmental
- IP Rating: IP67 (water & dust resistant)
- Dimensions: 360mm x 250mm x 20mm
- Weight: ~1.2 kg
- Operating Temp: -20°C to +85°C
- Material: ABS white radome
- Mounting: Model LM750-ETSI (bracket compatible)

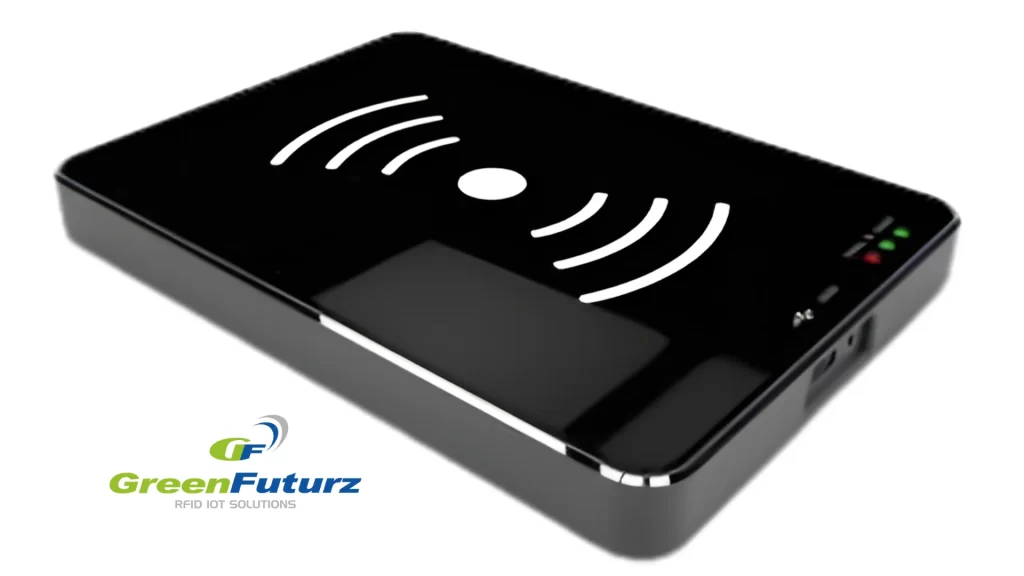

RFID UHF MID-RANGE DESKTOP READER
Compact, High-Performance RFID Solution for Modern Workspaces
Designed for desktop and industrial use, this UHF RFID reader supports reading up to 200 tags simultaneously with in a 1-meter range. With robust USB and Ethernet connectivity and cross-platform SDK support, it’s ideal for retail, logistics, and document management applications.
Key Features
- Supports EPC Class 1 Gen2 / ISO 18000-6C protocol
- Reads up to 200 tags simultaneously within a 1-meter range
- Dual interfaces: USB 2.0 and Ethernet (RJ45)
- Integrated circular-polarized antenna for reliable detection
- Compact, industrial-grade design for 24/7 operation
- SDK support for Windows, Linux, and Android platforms
Specifications
- Protocol: EPC Class 1 Gen2 / ISO 18000-6C
- Frequency: 865–868 MHz (EU), 902–928 MHz (US), region configurable
- Read Range: Up to 1 meter
- Tag Read Capacity: Up to 200 tags per cycle
- RF Power Output: Configurable up to 20 dBm
- Communication: USB 2.0 Type-B, 10/100 Mbps Ethernet (RJ45)
Mechanical & Environmental
- Dimensions: 180mm x 180mm x 35mm
- Weight: 700g
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% non-condensing
- Enclosure Material: aluminum

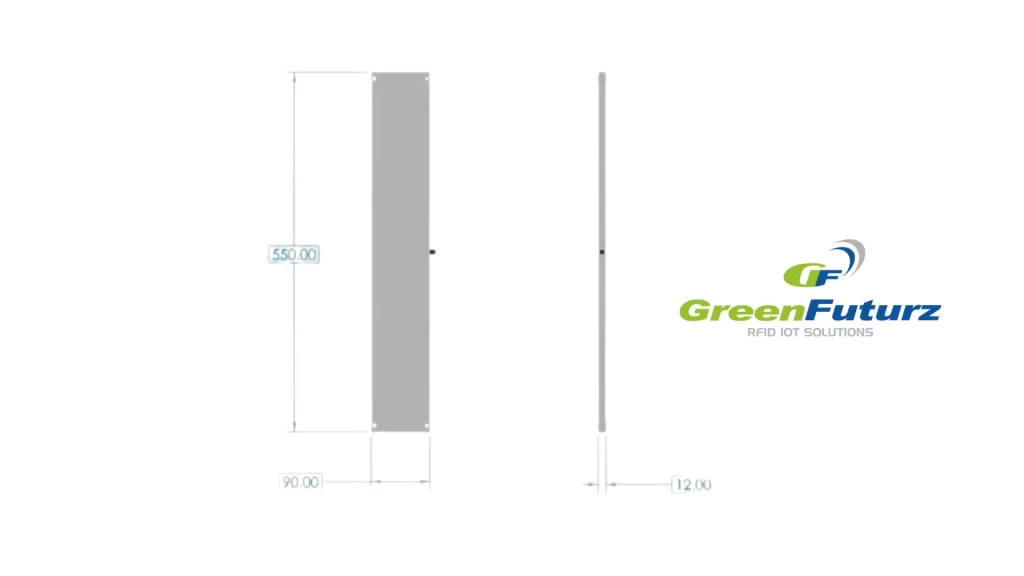

RFID UHF SLIM 6 DBI ANTENNA
High-Gain. Compact. Reliable.
Slim Antenna for Powerful RFID Performance
Engineered for high-read-range applications, the RFID UHF Slim 6 dBi Antenna offers outstanding gain and precision. Its lightweight, compact design ensures seamless compatibility with various RFID readers, making it ideal for space-sensitive deployments without compromising performance.
Key Features
- High-gain 6.5 dBi performance for extended read range
- Slim, lightweight design for easy installation
- Compatible with all standard RFID readers
- Linear polarization for stable signal strength
- Available with SMA Female or N-Type connectors
- Wide temperature and IP54-rated durability
Specifications
- Chip: Impinj M750 / UCODE
- Frequency: UHF 860–960 MHz
- Antenna Size: 70 x 15 mm
- EPC Memory: 128 bits
- TID Memory: Available
- Material: ABS Plastic
Mechanical & Environmental
- IP Rating: IP54
- Dimensions: 550 x 110 x 12 mm
- Weight: 1.30 kg
- Operating Temp: -10°C to +85°C
- Radome Material: ABS Whit

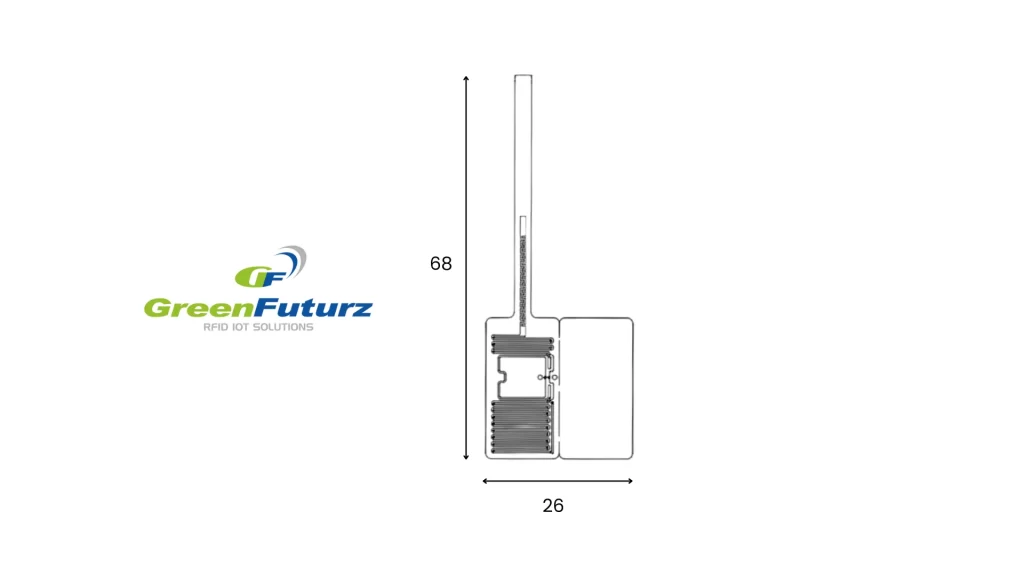

UHF RFID JEWELRY LABEL
Upgrade your jewelry tracking with the UHF RFID Label – smart, secure, and efficient.
Smart Tracking for Precious Pieces
Enhance your jewelry management with the ultra-compact and high-performance UHF RFID Jewelry Label. Designed for precision inventory control, anti-theft monitoring, and rapid checkout, this label is your smart solution for tagging small valuables.
Key Features
- Compact Size: Ideal for rings, earrings & small jewelry (68×26mm label).
- High Memory: 128-bit EPC + 512-bit user memory.
- Durable Build: PET base with aluminum antenna.
- Secure Use: Strong adhesive, tamper-resistant, passive tag.
- Global Standard: ISO 18000-6C & EPC Gen2 compliant.
Specifications
- Chip: Quanray Qstar-73GB
- Frequency: 860–960 MHz
- Mode: Passive
- Memory: EPC: 128 bits, User: 512 bits
- Durability: 100,000 cycles / 50-year data retention
Mechanical & Environmental
- Material: PET (50μm) + Etched Aluminum (10μm)
- Roll Format: 2500 pcs/roll; 8 rolls/carton
- Operating Temp: -20℃ to +50℃
- Application Temp: 10℃ to 40℃
- Shelf Life: 1 year (vacuum sealed, away from sunlight)
- Handling: Avoid bending, moisture, or impact

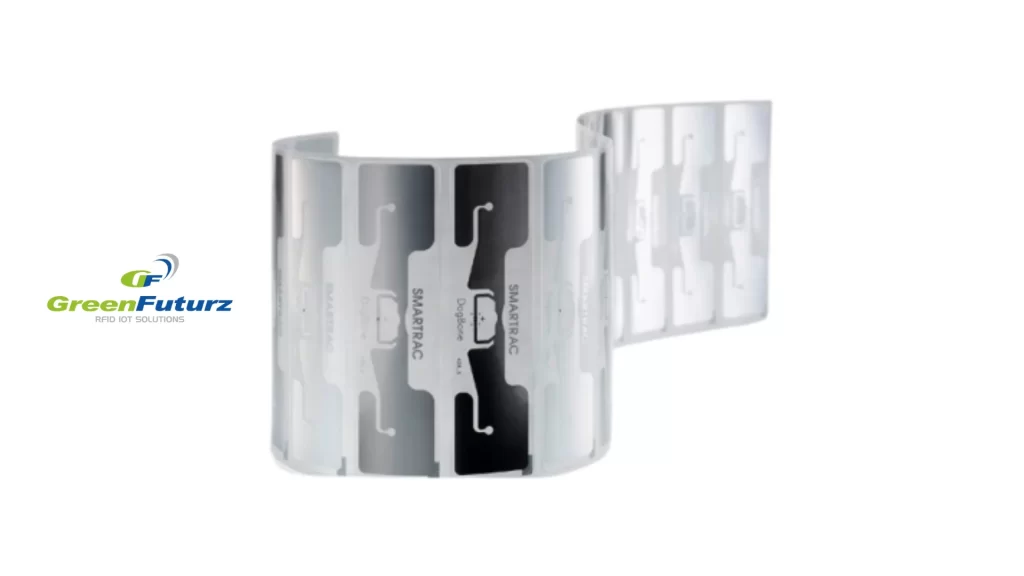

UHF RFID LABEL - AD DOGBONE® M750
Smart, high-performance tracking for logistics, automotive, and sports events.
Smart Tracking for Challenging Materials
Upgrade your supply chain and logistics management with the high-performance AD Dogbone® M750 RFID label. Designed for superior tracking even on difficult-to-tag materials, Dogbone M750 delivers fast, accurate inventory control, improved bulk reading, and enhanced data security for global operations.
Key Features
- Global Performance: Works well even on difficult-to-tag materials.
- High Sensitivity: Enhanced read/write performance for faster bulk reading.
- Smart Chip: Impinj M750 with 96-bit EPC and 32-bit User memory.
- Privacy Mode: Protects consumer data, supports loss prevention.
- Adaptive Tuning: Improved RF performance with autotune feature.
Specifications
- Chip: Impinj M750
- Frequency: 860–960 MHz
- Memory: 96-bit EPC / 32-bit User
- Standard: ISO 18000-63 / EPC Gen2v2
- Size: 94 x 24 mm (Antenna) | 97 x 27 mm (Die-cut)
- Formats: Dry Inlay / Wet Inlay / Paper Label
Mechanical & Environmental
- Material: PET substrate, silicon liner
- Operating Temp: -45°C to +85°C
- Reel Quantity: 10,000 pcs (inlay) / 3,000 pcs (label)
- Compliance: RoHS & REACH Certified
