Incremental Encoder

IXARC Incremental Encoder

Programmable Incremental Encoders
Incremental rotary encoders generate an output signal each time the shaft rotates a certain angle. The number of signals (pulses) per turn, also called PPR, defines the resolution of the device. The internal components of an in-cremental encoder are much simpler than the ones of an absolute encoder. This fits the need of many applications for simple, cost effective solutions while still providing accurate positioning. They are available with common con-figurations such as A, B, Z, and inverted signals available as HTL (Push-Pull) or TTL (RS422). POSITAL magnetic ongodore con all be configured win the UBIEAST configuration tool holning roduce inuentory Jouple

Programmable Pulse per Revolution: Any PPR from 1 to 16,384
High Performance due to Signal Processing: Phase Angle: 90° ± 14°
Industry Leading Sensing Technology: Accuracy ±0.0878°
Magnetic Technology: Simple Design – No Code Discs
Programmable Output: Push-Pull (HTL) or RS422 (TTL)
High Shock and Vibration Resistance: Insensitive to Dust and Humidity
Heavy Duty Enclosures:IP69K and Stainless Steel Versions Available
Large Variety of Flange Configurations:With a Range of Shaft Diameters

Main Variations

Our mission is to help our customers address all problems they can possibly face in the field. That is why we offer wide range of mechanical and housing variations; ensuring a quality sensor that fits your needs.

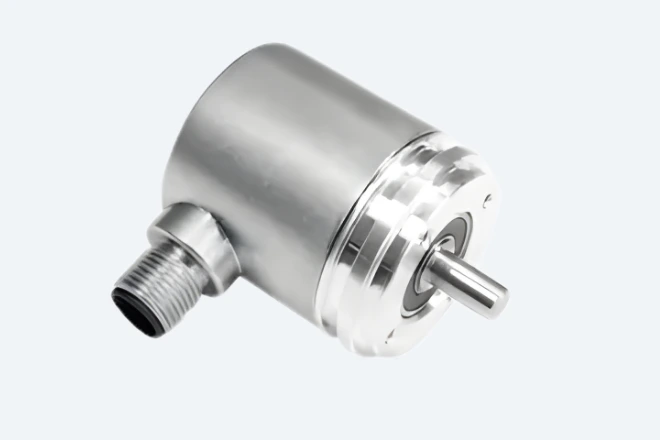

Compact Magnetic Encoders

Housing Diameters Ø 36 mm
Programmable: PPR, Output Drivers
Cost-Effective Design
Various Mechanics & Connections

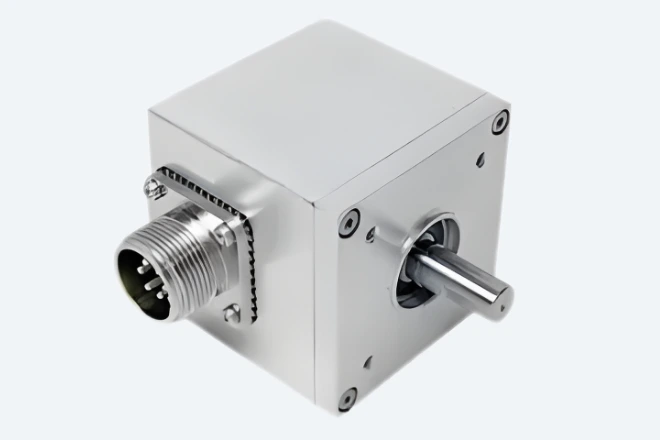

Cube and Square Encoders

Dimensions from 2.06″ to 2.68″
Programmable: PPR, Output Drivers
Shaft Ø 1/4″ to Ø 0.59″
Available with Cable and Connector

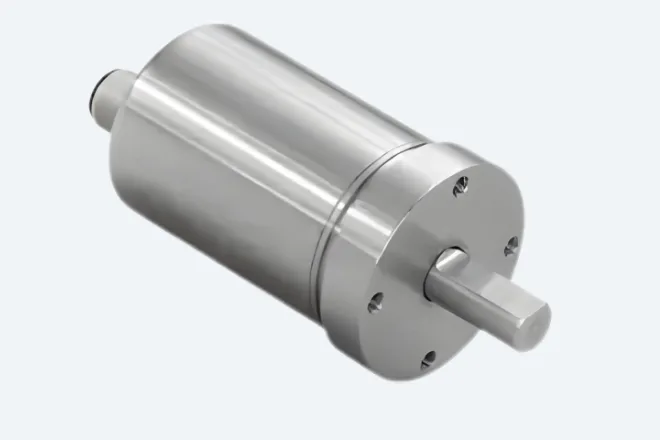

Heavy Duty Encoders

Stainless Steel V4L
Shock Resistance ≤ 200 g
Available with Solid or Hollow Shaft
Up to IP69K

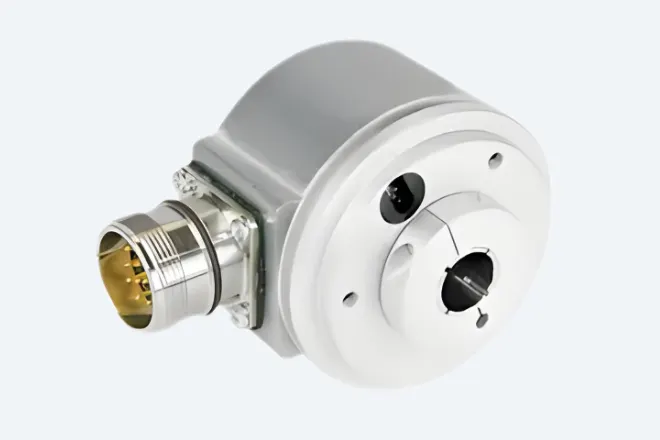

Through Hollow Encoders

Shaft Ø 3/8″ to 1 3/4″
Cable up to 10 m
M12 – M23 Connector

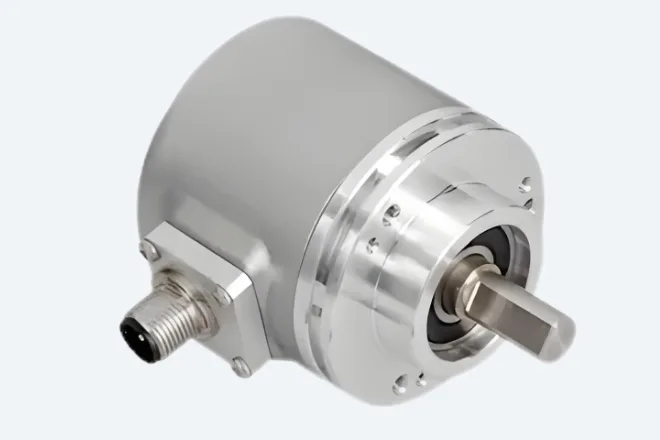

Industry Classics Encoders

Clamp and Synchro Flanges
Shaft Ø 5 – 12 mm (0.20 – 0.47″)
Cable and/or Connector
Economic, Compact, Programmable

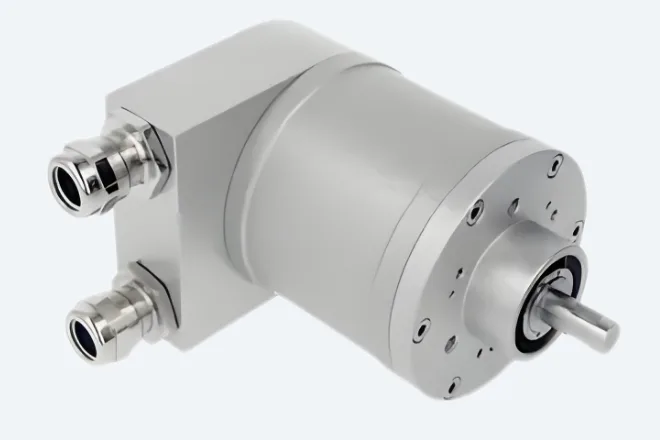

ATEX Encoders

Zone 1&21 (Mining, Oil + Gas)
Offered with Axial or Radial Glands
Programmable: PPR, Output Drivers
Available with Solid or Hollow Shaft

Applications

IXARC incremental encoders are ideal for various industries due to their small size and excellent performance. Their economic magnetic design makes them ideal for motor feedback, material handling applications and OEMS.
