4G/5G Cellular Router
RUT200
- CONNECTIVITY: 4G/LTE (Cat 4), 3G, 2G
- Wi-Fi: Wireless Access Point with Hotspot functionality
- WAN FAILOVER: Automatic switching to available backup connection
- RMS: Compatible with Teltonika Remote Management System

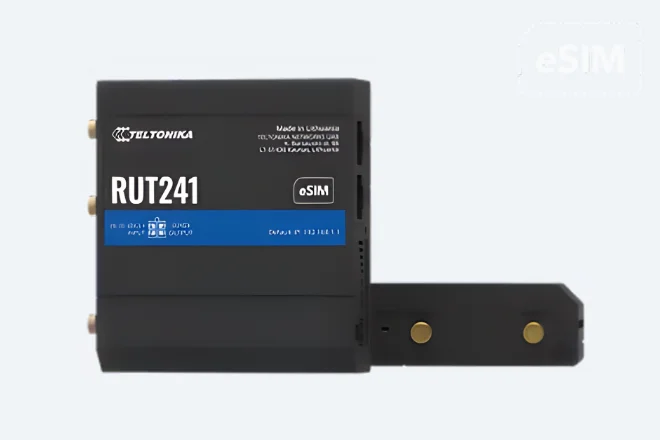

RUT241
- CONNECTIVITY: 4G LTE (Cat 4), 3G, 2G
- eSIM™:Seamless connectivity with eSIM™ SGP.22
- Wi-Fi:Wireless Access Point with Hotspot functionality
- RMS: For easy & convenient eSIM™ profile management

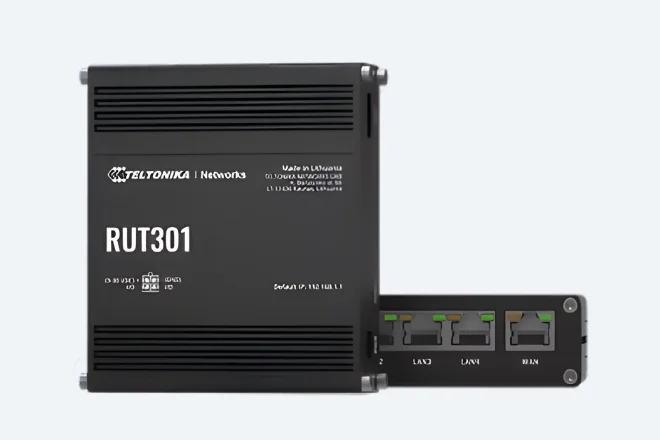

RUT301
- INTERFACES: 5x Ethernet ports (10/100 Mbps), Digital I/Os, and USB 2.0
- RMS: For remote management, access & VPN services
- SECURITY SUITE: Pre-configured firewall and multiple VPN services
- DURABLE: Industrial-grade design for withstanding harsh environments

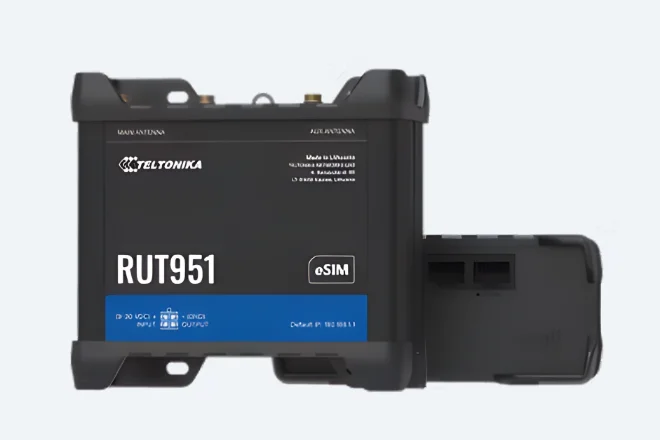

RUT951
- CONNECTIVITY: 4G LTE (Cat 4), 3G, 2G
- Wi-Fi: Wireless Access Point with Hotspot functionality
- WAN FAILOVER: Automatic switch to available backup connection
- DUAL SIM: With auto failover, backup WAN and other switching scenarios

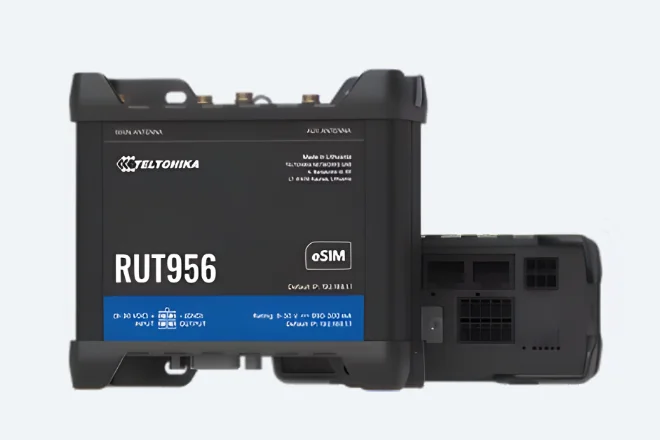

RUT956
- CONNECTIVITY: 4G LTE (Cat 4), 3G, 2G
- GNSS: Global Navigation Satellite System for location services and time synchronization
- MULTIPLE INTERFACES: Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs
- DUAL SIM: With auto failover, backup WAN and other switching scenarios
RUTM50
- 5G: Ultra-high cellular speeds of up to 3.4 Gbps
- DUAL SIM: Auto-failover, backup WAN, and other switching scenarios
- SA & NSA: Supports both SA & NSA 5G architectures
- FUTURE-PROOFING: Backward compatible with 4G (LTE Cat 19/18)

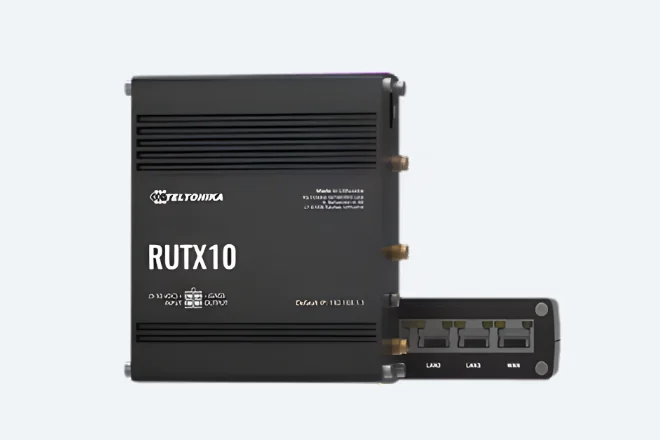

RUTX10
- GIGABIT ETH: 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
- WI-FI & BT: Wave-2 802.11ac Dual Band Wi-Fi and Bluetooth LE
- VPN: Numerous VPN Protocols supported, including OpenVPN, IPsec, PPTP, L2TP & DMVPN
- RMS: Compatible with Teltonika Networks Remote Management System

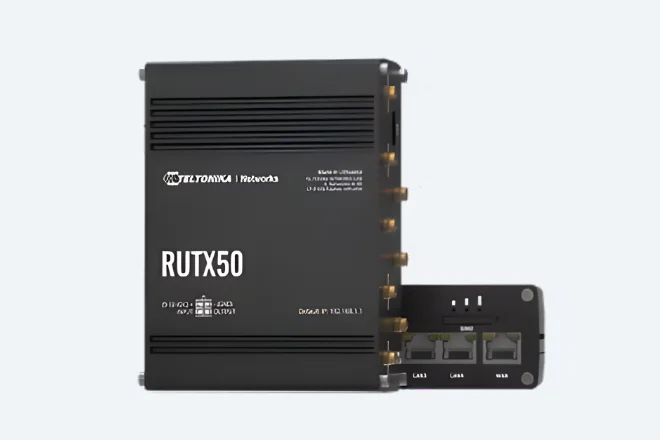

RUTX50
- 5G: Ultra-high cellular speeds of up to 3.3 Gbps
- DUAL SIM: With auto failover, backup WAN, and other switching scenarios
- SA & NSA: Supports both architectures to leverage the 5G infrastructure
FUTURE-PROOFING: Backward compatible with 4G (LTE CAT 20) and 3G network technologies

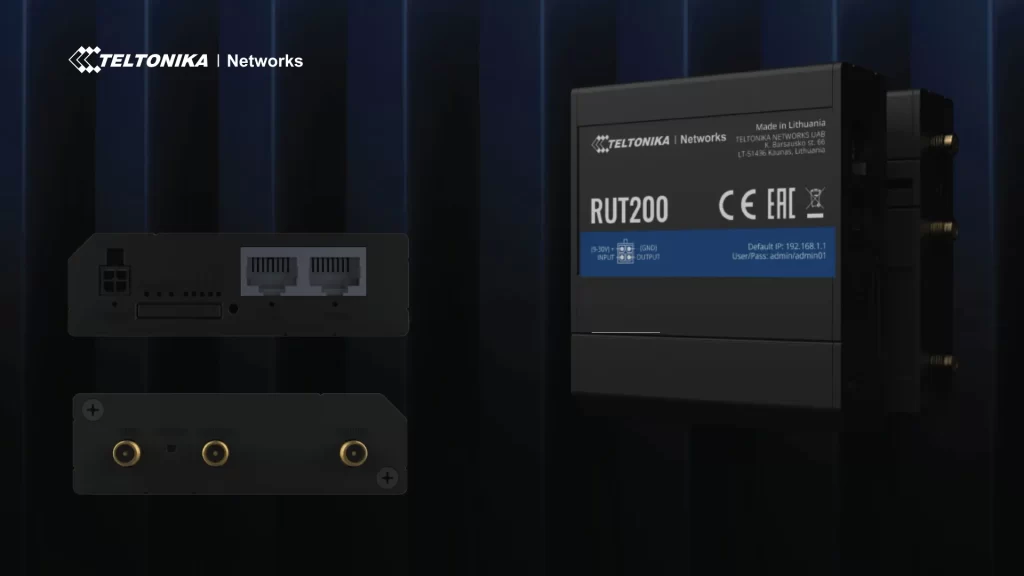

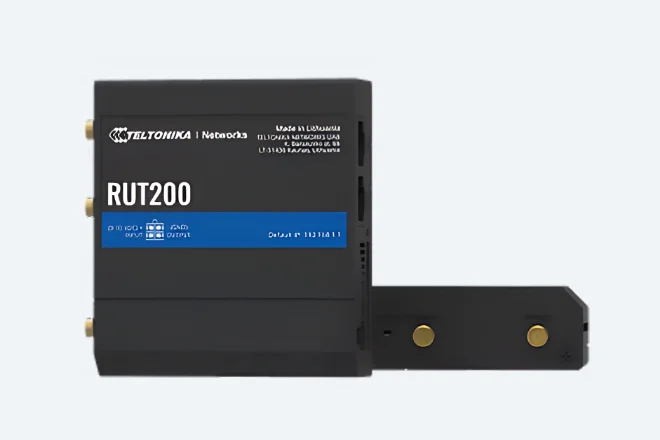

RUT200 INDUSTRIAL CELLULAR ROUTER
PRODUCT DESCRIPTION
- RUT200 brings the top-rated features of our all-time bestseller RUT240, tailored for users in Asia, CIS, Middle East, Africa, and South America.
- Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this model is perfect to quickly set up primary and backup connectivity with remote management capabilities.
- Due to its compact size, industrial design, and I/Os, this model is very suitable in manufacturing, automation, transportation, and other industrial application scenarios that require mission-critical connectivity in rigorous conditions.
CONNECTIVITY
4G/LTE (Cat 4), 3G, 2G
COMPACTNESS
Small size – easy integration
WAN FAILOVER
Automatic switching to available backup connection
I/O
Digital Input/Output for remote monitoring and control
WIFI
Wireless Access Point with Hotspot functionality
RMS
Compatible with Teltonika Remote Management System
HARDWARE
| Mobile | 4G/LTE (Cat 4), 3G, 2G |
| CPU | Mediatek MIPS 24Kc 580MHz |
| Storage | 16 MB Flash |
| Memory | 128 MBytes RAM |
| Powering option | 4 pin power socket, 9-30 VDC |
| SIM | 1 x External SIM holder (2FF) |

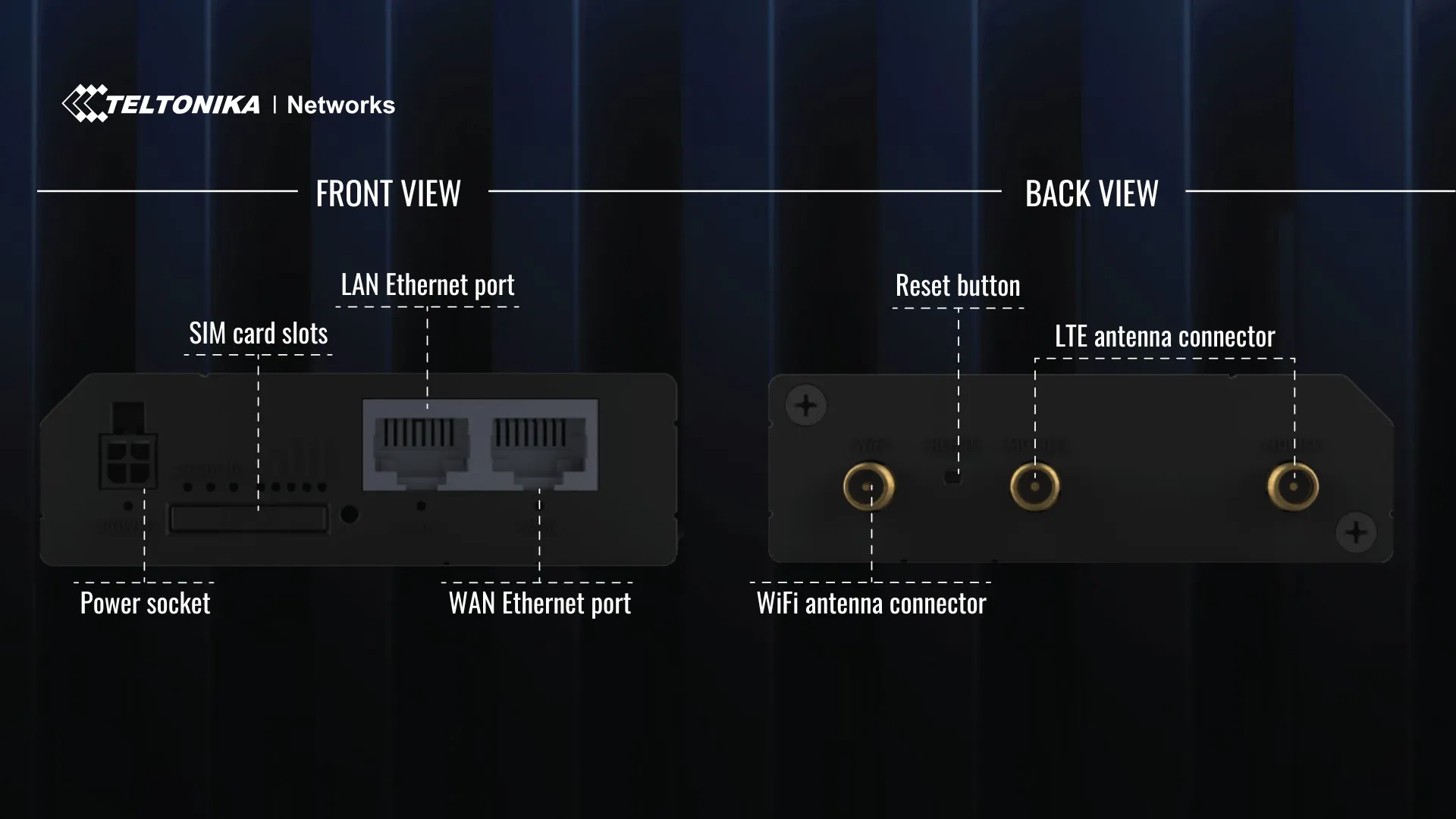

| Antenna connectors | 2 x SMA for mobile, 1 x RP-SMA for WiFi |
| Ethernet | 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN |
| WiFi | IEEE 802.11b/g/n, Access point (AP), Station (STA) |
| Inputs/Outputs | On 4 pin socket: 1 x Digital input, 1 x Digital open collector output |
| Status LEDs | 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with DIN rail mounting option, plastic panels |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 131 g |
SOFTWARE
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Auto APN, Band lock |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| Network | Failover (Network backup), VLAN, QoS, Load Balancing |
| Security | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard |
| Monitoring and management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| SMS features | SMS status, SMS con?guration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB ?lter, UPNP, Traffic Logging |

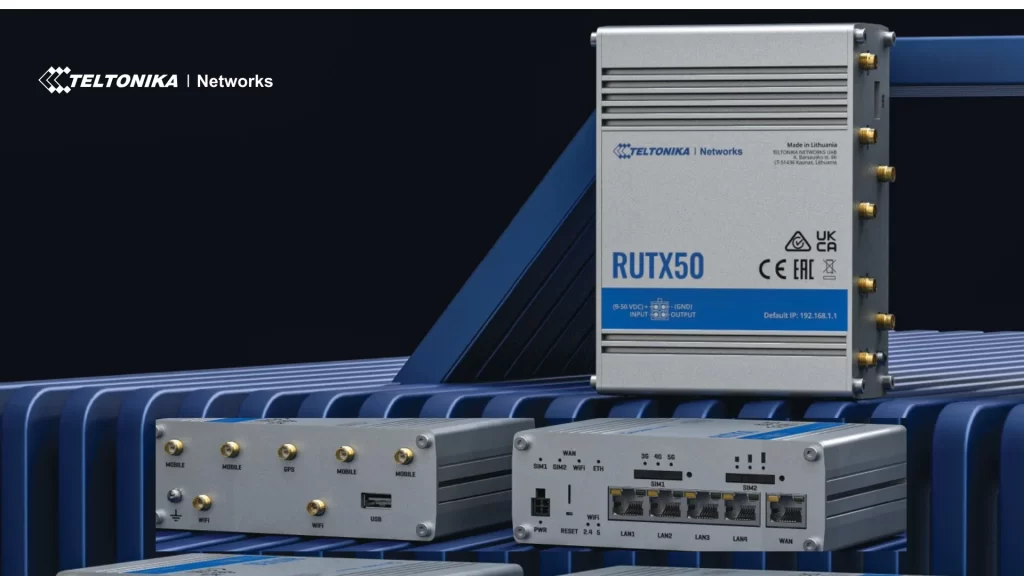

RUTX50 INDUSTRIAL 5G ROUTER
- RUTX50 is your future-proof, multi-network industrial router, offering 5G mobile communication for high-speed and data-heavy applications.
- 5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer.
The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions.
RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.
5G
Ultra-high cellular speeds of
up to 3.3 Gbps
DUAL SIM
Uninterrupted communication
with auto-failover
SA & NSA
Supports both architectures to
leverage the 5G infrastructure
FUTURE-PROOFING
Backward compatible with 4G (LTE CAT 20) and 3G network technologies

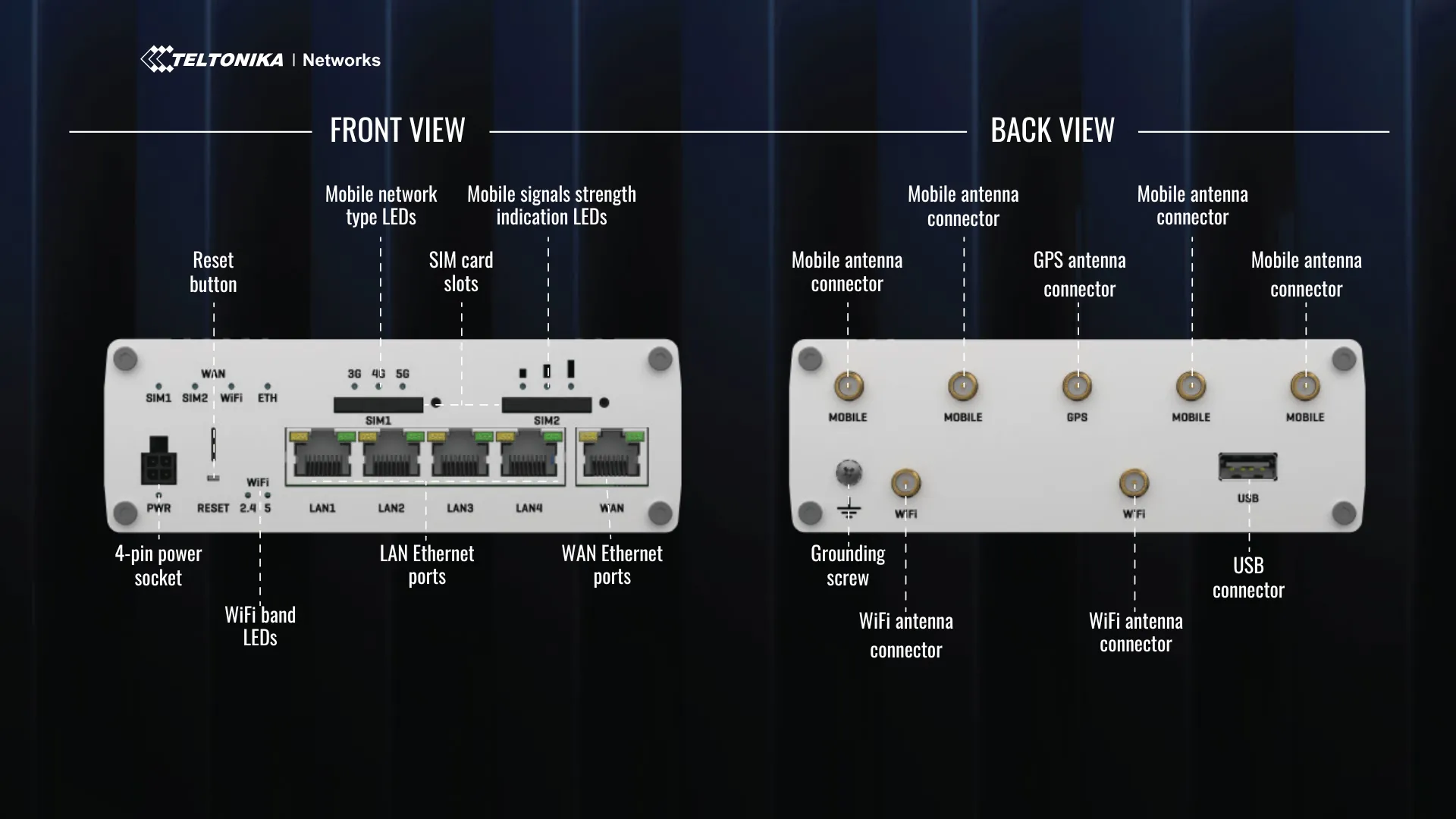

HARDWARE
| Mobile | 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) - LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G - 42 Mbps DL, 5.76Mbps UL |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| Flash storage | 256 MB |
| RAM | 256 MB |
| Powering options | 4-pin power socket, 9-50 VDC |
| SIM | 2 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V |
| Antenna connectors | 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS |
| Ethernet | 5 x 10/100/1000 Ethernet ports: 1 x WAN (con?gurable as LAN), 4 x LAN |
| WiFi | 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| Wireless mesh/roaming | Wireless mesh (802.11s), fast roaming (802.11r) |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Inputs/Outputs | On 4-pin socket: 1 x Digital input, 1 x Digital open collector output |
| Other | 1 x USB host, 1 x Grounding screw |
| Status LEDs | 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminum housing, DIN rail (can be mounted on two sides), ?at surface placement |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 533 g |
SOFTWARE
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits |
| Network features | Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring |
| Monitoring and Management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Hotspot | External/Internal Radius, SMS OTP, MAC authentication, Walled Garden |
| GNSS | NMEA forwarding, AVL, Geofencing |
